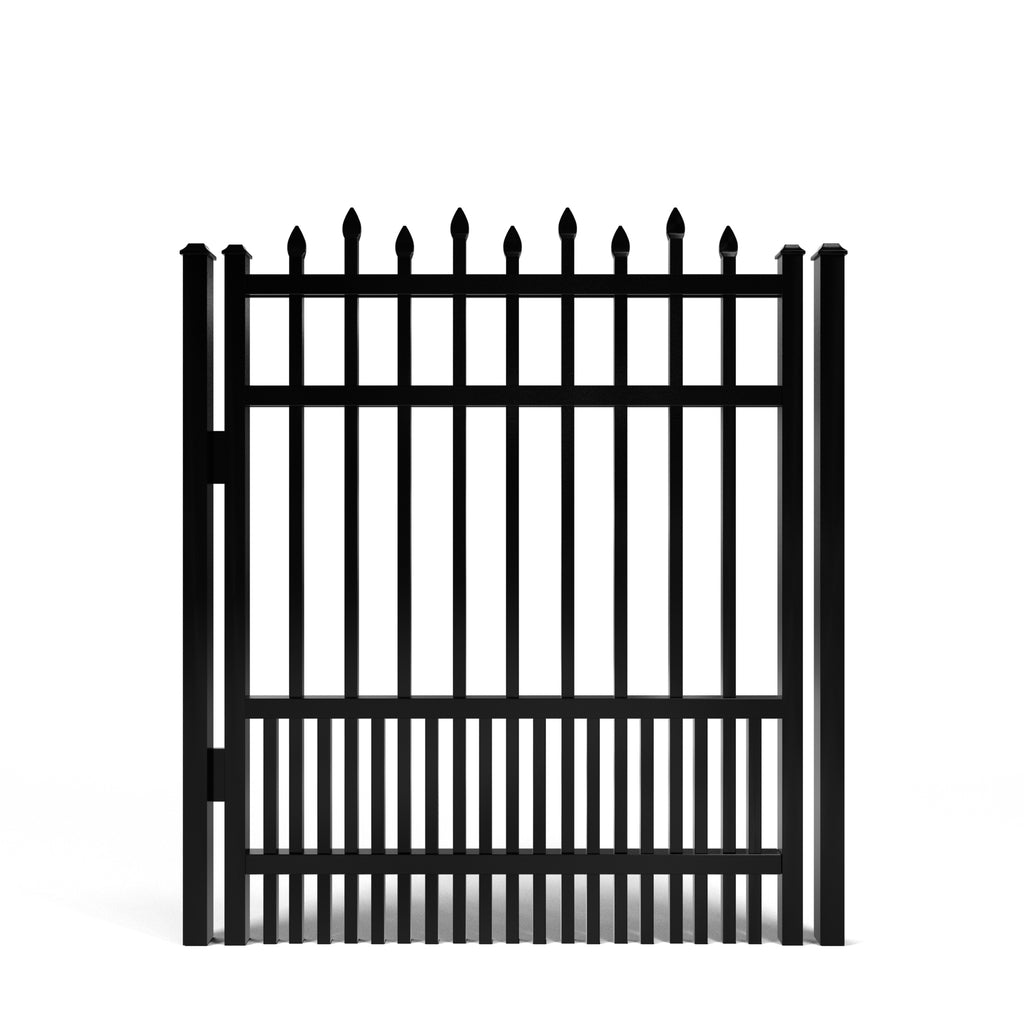

Black metal fence gate with pointed top bars and puppy pickets on a white background
  • Black metal fence gate with pointed top bars and puppy pickets on a white background

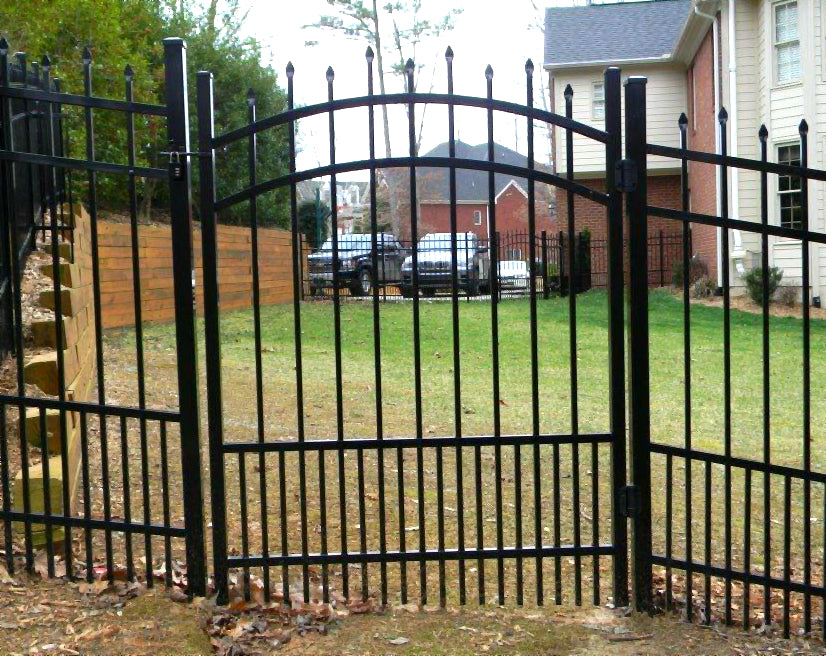

  • Black metal fence with a gate in front of a house and parked cars.

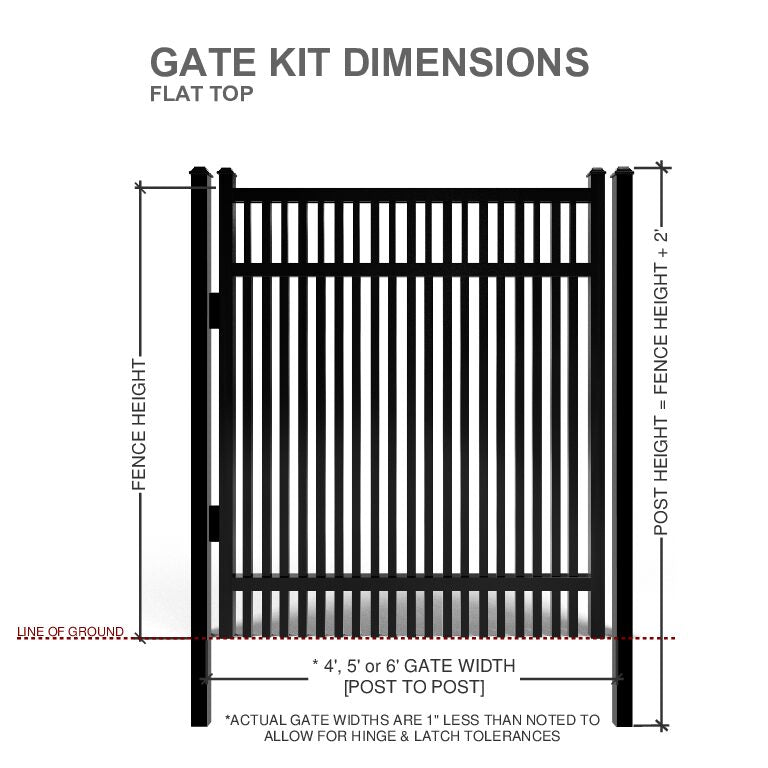

  • Diagram of an aluminum gate kit with dimensions labeled on a white background

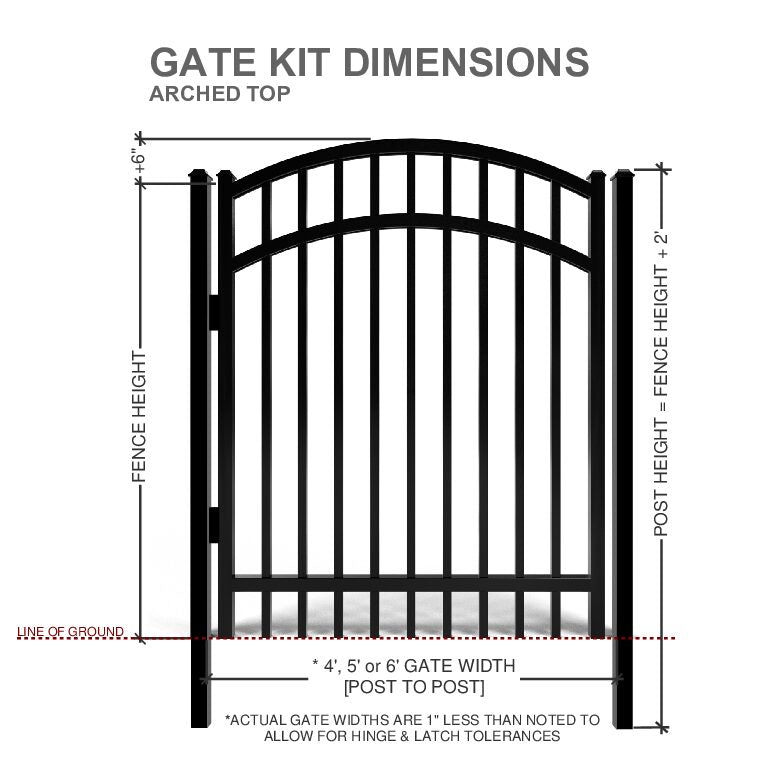

  • Technical drawing of an aluminum gate kit with dimensions labeled

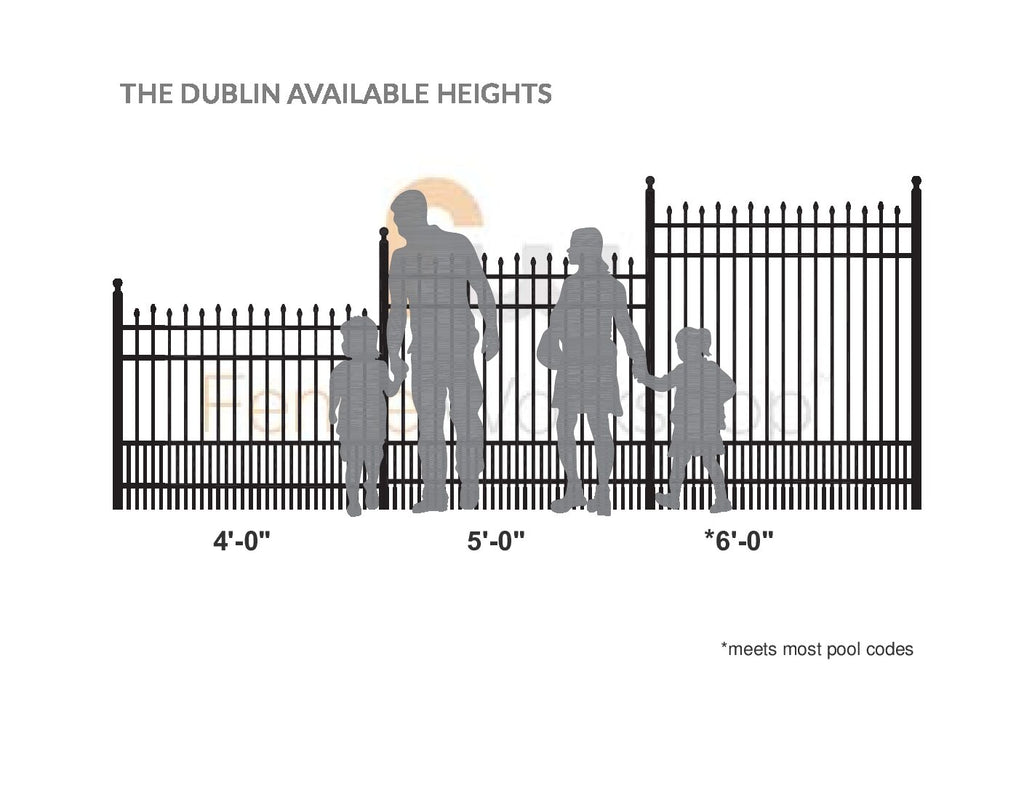

  • Diagram showing the height range of an aluminum fence with silhouettes of people and children, labeled 'The Dublin Available Heights'.

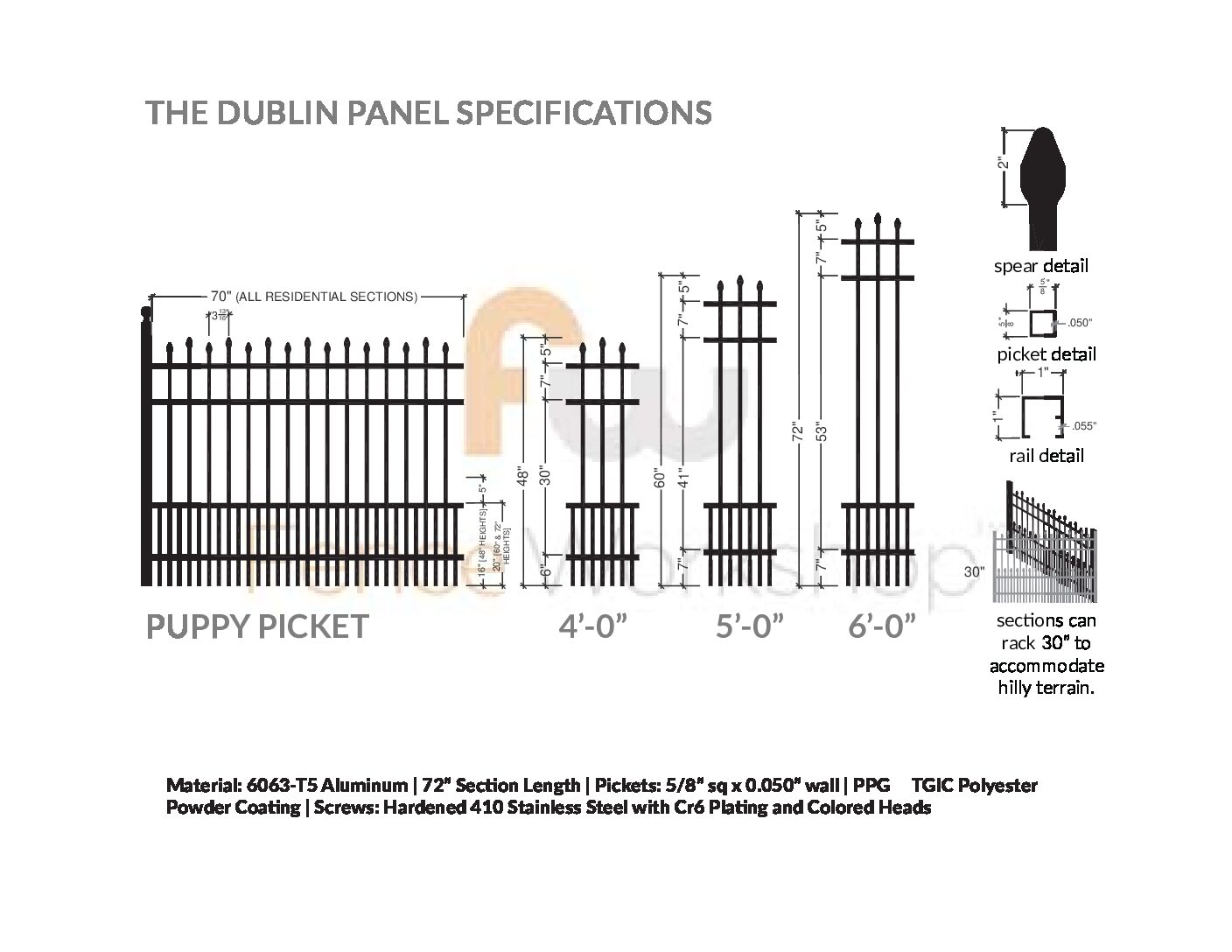

  • Technical drawing of an aluminum fence panel with specifications labeled

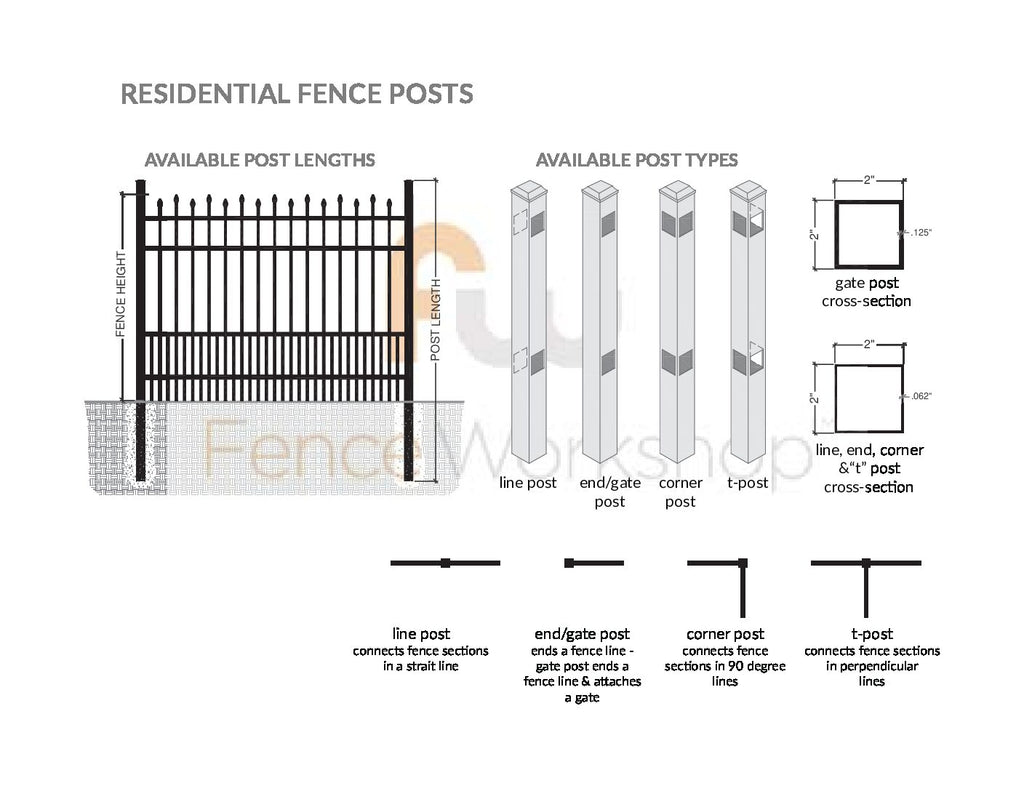

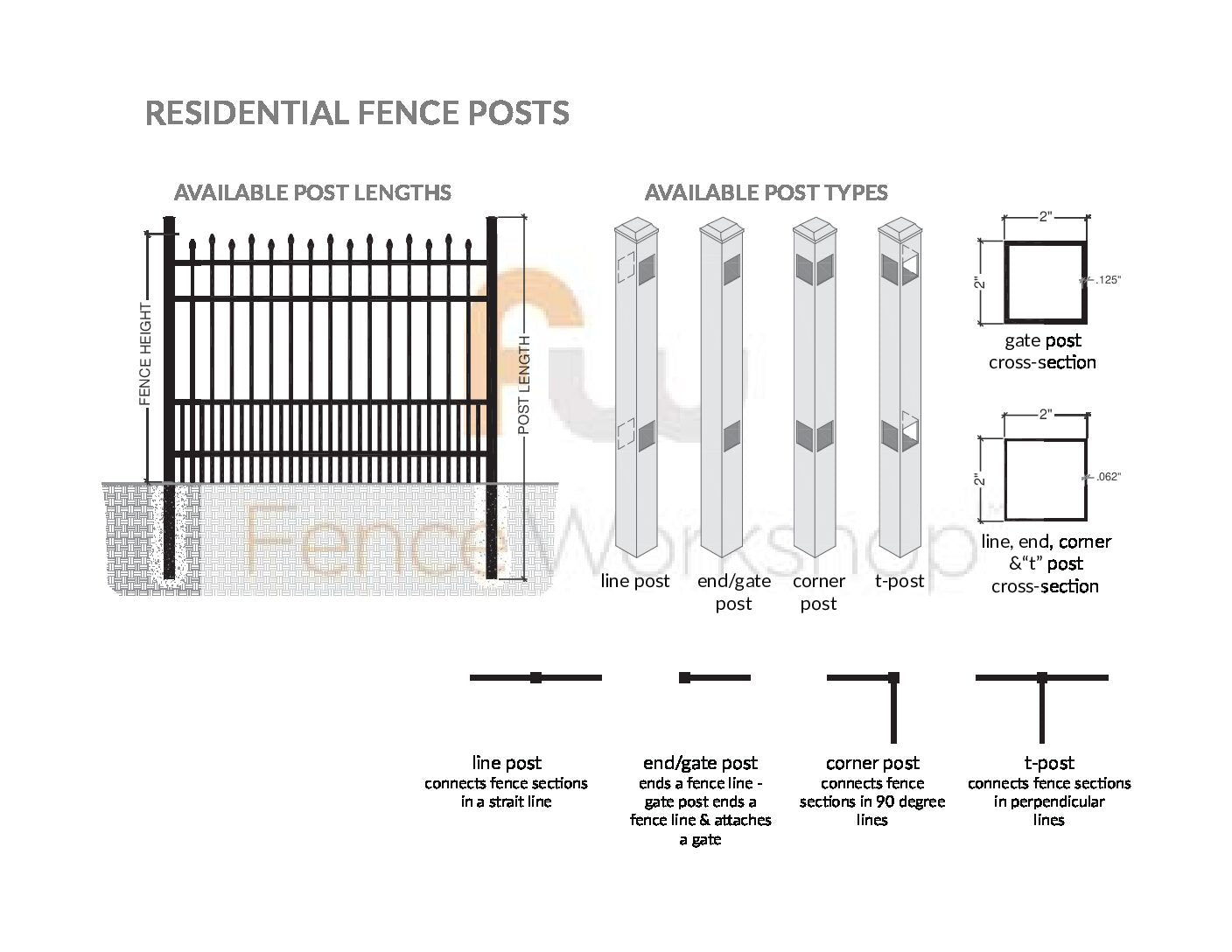

  • Diagram of residential aluminum fence posts with different types and lengths on a white background.
  • Black metal fence gate with pointed top bars and puppy pickets on a white background
  • Black metal fence with a gate in front of a house and parked cars.
  • Diagram of an aluminum gate kit with dimensions labeled on a white background
  • Technical drawing of an aluminum gate kit with dimensions labeled
  • Diagram showing the height range of an aluminum fence with silhouettes of people and children, labeled 'The Dublin Available Heights'.
  • Technical drawing of an aluminum fence panel with specifications labeled
  • Diagram of residential aluminum fence posts with different types and lengths on a white background.
Dublin Walk Gate Kit

Dublin Walk Gate Kit

$479.60
$479.60
Size
Gate Top Design
Color

Our Dublin style spear top aluminum walk gate kit with puppy pickets is ideal for those customers looking to protect their small pets. Pickets have standard spacing on upper 3/4 of gate and double picket spacing on the bottom for an added level of security. As with all of our aluminum gate kits, your order will come complete with the gate post and gate receiver post, a set of 5" self-closing gate hinges, and a standard gate gravity latch.

What's Included?

  • Assembled Aluminum Walk Gate - Actual gate width is 1" less than advertised size to allow for hinges and latch
  • (2) 5" Spring Gate Hinges
  • (1) Gate Gravity Latch (Color Will Match Gate)
  • (1) Gate Post (Height and Color Will Match Gate)
  • (1) Receiver Post (Height and Color Will Match Gate)

Material Specifications

  • 6063-T5 Aluminum
  • Pressed Point Exposed Pickets
  • Pickets 5/8" Sq x 0.050" Wall
  • Rails 1" Sq x 0.085" Wall
  • Gate Uprights: 1 1/2" Sq x 0.090" Wall
  • Welded Construction
  • All Aluminum Walk Gates Are Assembled And Installation Ready
  • Arched Aluminum Walk Gates Are 6" Taller Than Straight Top Gates
  • Dublin Style Does Not Typically Meet Pool Code In Any Height

Need Customization?

If the gate size you need is not listed above, don't worry! Just send us an email with the exact size required and we'll get it custom ordered for you. Please allow 1 to 3 weeks for custom gate orders to be shipped.
